Live LMS Callback

Notice

This document is a machine-translated draft and is currently undergoing review. Some content may be inaccurate or differ from the original Korean version. For the most precise information, please refer to the Korean documentation.

LMS Callback is a feature that collects viewing data in real time and transmits it to a Learning Management System(LMS) server. This enables advanced education management logic such as course completion processing, learning pattern analysis, and viewing statistics calculation.

---

Key features

• Asynchronous transmission: The player does not wait for a server response when transmitting data, so the viewing experience is uninterrupted regardless of network conditions.
• Privacy protection: LMS callback data does not include sensitive personal information such as Mac Address or IP Address, ensuring strong security.

---

Callback configuration

The callback URL can be configured independently for each channel.

1. Go to Kollus Live console > [Channel] > [Channel list].
2. Select one of the following depending on the situation.
   • Configuring during new channel creation: Click [Register channel] in the upper right corner.
   • Configuring for an existing channel: Click [Edit] on the right side of the target channel.

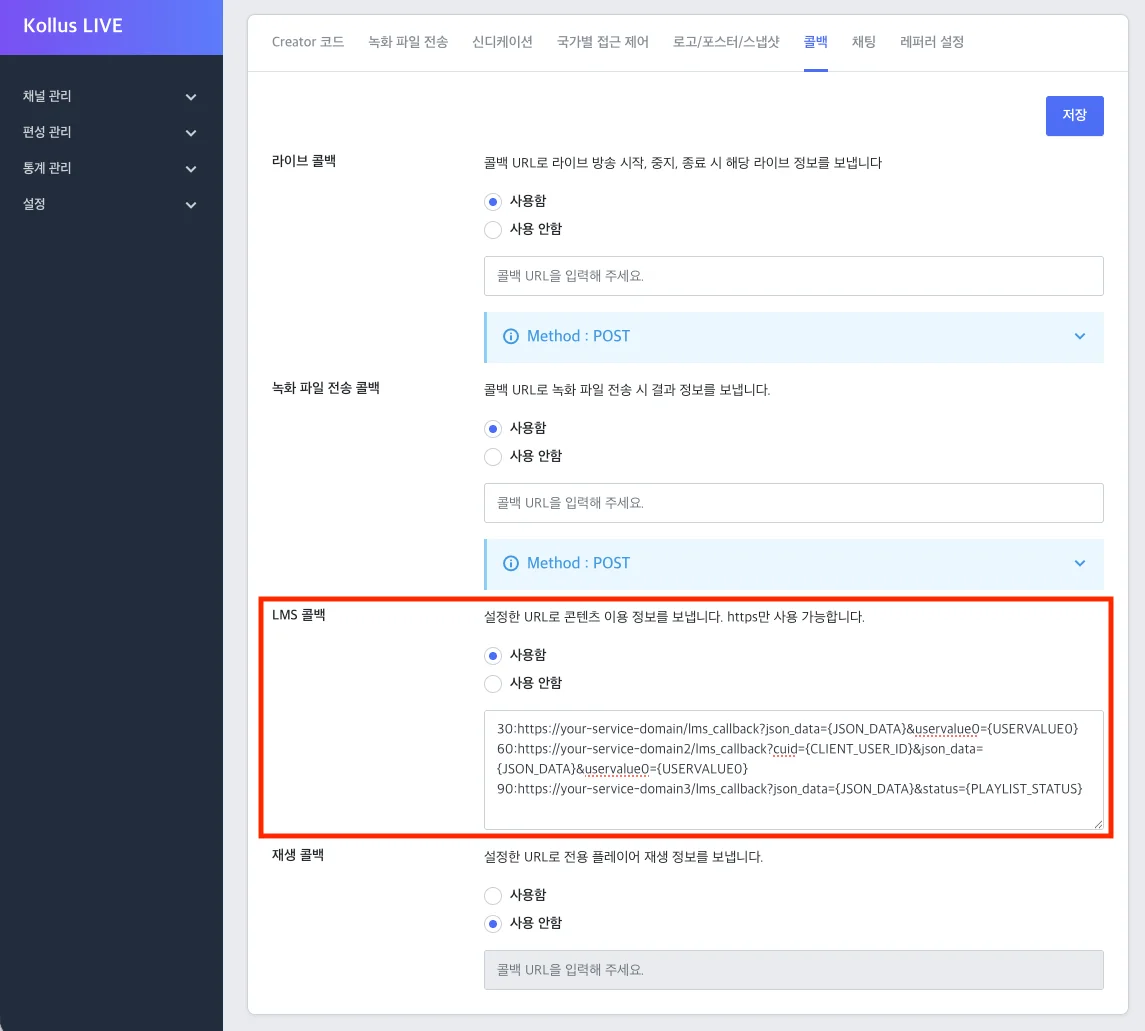

3. In the [Callback] tab at the bottom, enter the value in the format 'transfer interval:callback URL' in the [LMS callback] field.
   • Delimiter: Colon (:)
   • Transfer interval: In seconds (recommended: 30–60 seconds)
   • Callback URL: Server address to receive the data (https required)
   • Multiple registrations: Multiple URLs can be registered using a line break (\n) to send data to multiple systems.

4. After completing the input, click [Save].


Callback invocation timing

• Periodic invocation: Called repeatedly at each configured transfer interval.
• Event invocation: Called immediately when a user plays (Play), pauses (Pause), or stops (Stop), regardless of the interval.
• Session identification: The {START_AT} value changes when the player is refreshed or reconnected, distinguishing it as a new viewing session.

Callback configuration example

To receive detailed viewing data (JSON_DATA) and a custom variable (USERVALUE0) every 30 seconds to a specific server (https://your-service-domain/lms_callback), enter the following in the Kollus Live console.

30:https://your-service-domain/lms_callback?json_data={JSON_DATA}&uservalue0={USERVALUE0}

---

Request options

These are options that can be added as parameters after the callback URL.

Parameter	Description
{JSON_DATA}	JSON object containing all viewing information
{CLIENT_USER_ID}	User ID (the client_user_id entered when generating the JWT)
{START_AT}	Transmission request time (Video Gateway call time, Unix Timestamp)
{MEDIA_CONTENT_KEY}	Live broadcast key
{ENCODING_PROFILE_KEY}	Encoding profile key
{HOST_NAME}	Domain that requested the live stream link Example: catenoid.video.kr.kollus.com
{PLAYER_ID}	Kollus player unique ID
{PLAYLIST_STATUS}	(When using Kollus secure player) Viewing status play : Watching pause: Paused stop: Player window minimized
{DEVICE}	Device model name
{RUN_TIME}	Cumulative watch time including pauses (sec)
{SHOW_TIME}	Cumulative watch time excluding pauses, including timeshift (sec)
{USERVALUE0~99}	Custom variables (UTF-8 format required) Example: &uservalue0={USERVALUE0}&uservalue1={USERVALUE1}...

Transmission data (JSON_DATA) details

JSON_DATA contains all viewing data.

user_info

Field	Type	Description
content_provider_key	string	Service account key (broadcasting entity)
client_user_id	string	User ID (the client_user_id entered when generating the JWT)
player_id	string	Kollus player unique ID
hardware_id	string	Hardware ID
host_name	string	Domain that requested the live stream link
device	string	Device model name

content_info

Field	Type	Description
media_content_key	string	Live broadcast key
channel_key	string	Channel key
start_at	integer	Transmission request time (Video Gateway call time, Unix Timestamp)
runtime	integer	Cumulative watch time including pauses (sec)
showtime	integer	Cumulative watch time (sec)
serial	integer	LMS sending sequence (starting from 0)
uservalue{0~99}	string	Custom variables (uservalue0–uservalue99)

---

Watch time terminology

Watch time calculation criteria

Buffering time is not included when calculating watch time.

Viewing scenario example

To aid understanding, assume a user is connected for 40 seconds.

• [13:00:00] Starts watching the broadcast
• [13:00:20] Pauses the broadcast (paused for 20 seconds)
• [13:00:40] Ends watching the broadcast

Term	Definition	Calculation method	Example result
Run Time	Total dwell time Total time connected to the service	End time - Start time	40 seconds
Show Time	Actual watch time Time the player was actually playing	Run Time - Pause time	20 seconds
