Bookmark Integration

Overview

Bookmark integration is a feature that synchronizes bookmark data created in the Kollus player with an external server (customer database) via API.

Bookmark types

My bookmarks ("kind": 0): Personal data added directly by the user.
Official bookmarks ("kind": 1): Table of contents, chapters, or key summary information configured by the customer. Displayed to all users in common.

Note

Feature activation: The bookmark integration feature is disabled by default. To activate this feature, please contact Technical Support(tech_support@catenoid.net).
Account-level settings: Only one bookmark integration URL can be registered per service account. (Individual settings per channel are not available.)

Requirements

Offline synchronization: Bookmark data created by a user while offline must be transmitted to the server immediately upon going online.

Data transmission timing

Platform	Data transmission timing
Mobile app	Cumulative data is transmitted when the app process terminates
PC (JavaScript)	Transmitted when the browser tab is closed or the page is navigated away (unload)

API common parameters

Parameter specifications commonly included in bookmark-related API requests.

Parameter	Type	Description
`upload_file_key`	`string`	Unique identifier issued when content is uploaded
`media_content_key`	`string`	Unique identifier for content within a channel
`client_user_id`	`string`	User ID
`position`	`integer`	Bookmark position (sec)
`localtime`	`integer`	Time when the bookmark was added (Unix timestamp)
`label`	`string`	Bookmark label
`value`	`string`	Bookmark content
`uservalue{0~99}`	`string`	Custom variable (`uservalue0`–`uservalue99`)

Note

Time synchronization: localtime represents the local time on the user's device, not the server time. Discrepancies with the server may occur depending on the network environment, so it is not recommended to use this field for logic other than record-keeping.

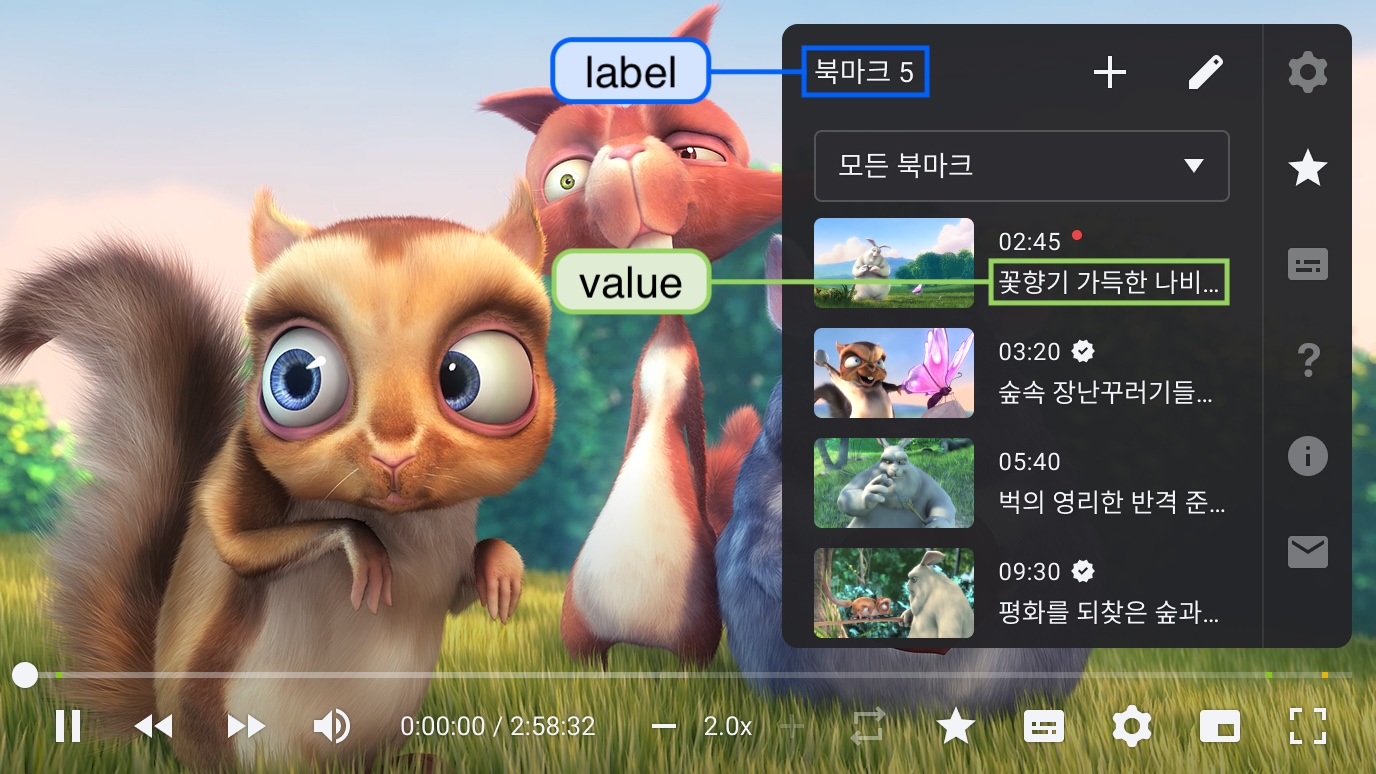

UI mapping: label is the name of the bookmark group, and value is the text of an individual bookmark item.

Bookmark list retrieval API (list URL)

An interface that retrieves stored bookmark data when the player launches and returns it in JSON format. All responses must comply with UTF-8 encoding.

Request specifications

	Official bookmarks	Official bookmarks + My bookmarks
Method	`GET`	`GET`
Parameters	`upload_file_key (string)` `media_content_key (string, optional)`	`media_content_key (string)` `client_user_id (string)`

Dynamic parameter substitution

The {uservalue0}–{uservalue9} format within a registered List URL is automatically replaced with actual data at the time of the request.

Registered URL

https://abc.com/bookmark/read?LC={uservalue0}&device={uservalue9}

Actual call URL

https://abc.com/bookmark/read?LC=LC001&device=mobile

Response fields

Field	Type	Description
`error`	`integer`	API processing result (`0`: success, other: error)
`result`	`object`	Object containing bookmark data
`result.bookmark_labels`	`array`	Bookmark group names to be displayed in the bookmark list (e.g., ["My Bookmark", "Official Bookmark"])
`result.bookmark_positions`	`array`	Bookmark data

Bookmark_positions items

Field	Type	Description
`position`	`integer`	Bookmark position (sec)
`value`	`string`	Bookmark content
`kind`	`integer`	Bookmark type `0`: My bookmarks `1`: Official bookmarks
`label`	`string`	Official bookmark label (empty string if it is a personal bookmark)
`localtime`	`integer`	Time when the bookmark was added (Unix timestamp)

Response example

{
  "error": 0,
  "result": {
    "bookmark_labels": [ "My Bookmark", "Official Bookmark"],
    "bookmark_positions": [
      {
        "position": 3,
        "value": "Review items",
        "kind": 0,
        "label": "",
        "localtime": 1417568260
      },
      {
        "position": 5,
        "value": "Core formula summary",
        "kind": 1,
        "label": "Instructor Recommended",
        "localtime": 1417538265
      }
    ]
  }
}

Bookmark batch update API (update URL)

An API that combines bookmark add, update, and delete requests into a single request for processing. The actions within the delivered Action Block array are executed in the order they are included in the array.

Note

When the batch update (update) URL is activated, individual action URLs (register, remove) are not called and are managed through this API instead.

Request specifications

	Details
Method	`POST`
Content-Type	`application/x-www-form-urlencoded`
Parameters	`bookmarks` (JSON string of the `Action Block` array)

Action block structure

The required field configuration differs depending on the action type (register, remove) and bookmark type (official bookmark/personal bookmark).

Action types

register: Add (register) a new bookmark or update an existing bookmark
remove: Delete a bookmark at a specific point (position)

Official bookmarks

Field	Type	Description	`register`	`remove`
`action`	`string`	Action type (`register` or `remove`)	◯	◯
`upload_file_key`	`string`	Upload file key	◯	◯
`position`	`integer`	Bookmark position	◯	◯
`label`	`string`	Official bookmark label	◯	◯
`value`	`string`	Bookmark content	◯	-
`localtime`	`integer`	Time when the bookmark was added (Unix timestamp)	◯	◯

My bookmarks

Field	Type	Description	`register`	`remove`
`action`	`string`	Action type (`register` or `remove`)	◯	◯
`media_content_key`	`string`	Media content key	◯	◯
`client_user_id`	`string`	User (viewer) ID of the customer service	◯	◯
`position`	`integer`	Bookmark position	◯	◯
`value`	`string`	Bookmark content	◯	-
`localtime`	`integer`	Time when the bookmark was added (Unix timestamp)	◯	◯

Note

The bookmark content (value) field is not transmitted in a bookmark delete (remove) request.

Dynamic parameter substitution

The {uservalue0}–{uservalue9} format within a registered Update URL is automatically replaced with actual data at the time of the request.

Registered URL

https://abc.com/bookmark/read?LC={uservalue0}&device={uservalue9}

Actual call URL

https://abc.com/bookmark/read?LC=LC001&device=mobile

Response example

[
  {
    "action": "register",
    "media_content_key": "{MEDIA_CONTENT_KEY}",
    "client_user_id": "{END_USER_ID}",
    "position": 45,
    "value": "Key concept",
    "localtime": 1414538260,
    "LC": "LC001",
    "device": "mobile"
  },
  {
    "action": "remove",
    "media_content_key": "{MEDIA_CONTENT_KEY}",
    "client_user_id": "{END_USER_ID}",
    "position": 67,
    "localtime": 1417538260,
    "LC": "LC001",
    "device": "mobile"
  }
]

Integration flow

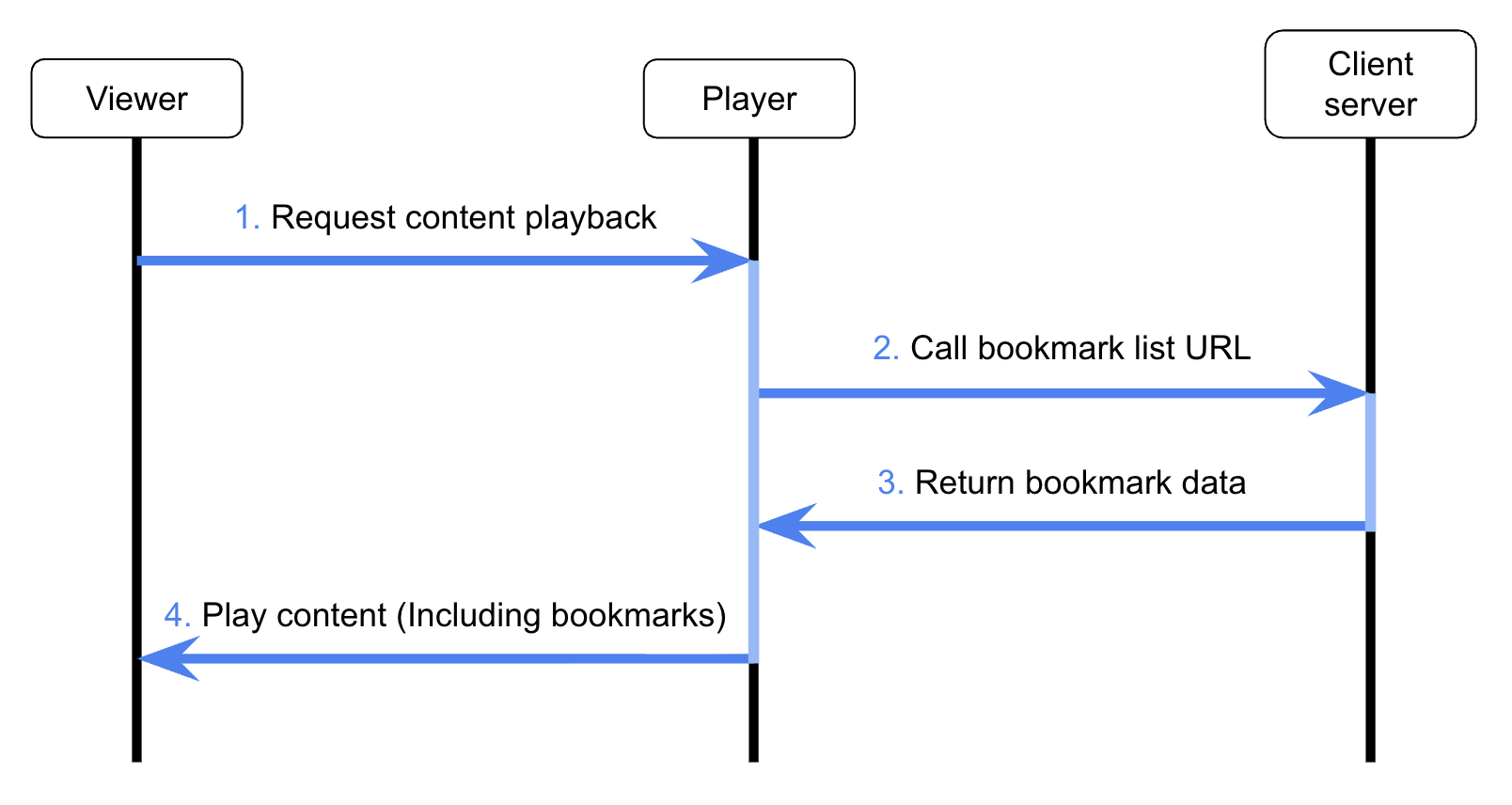

Bookmark list retrieval flow

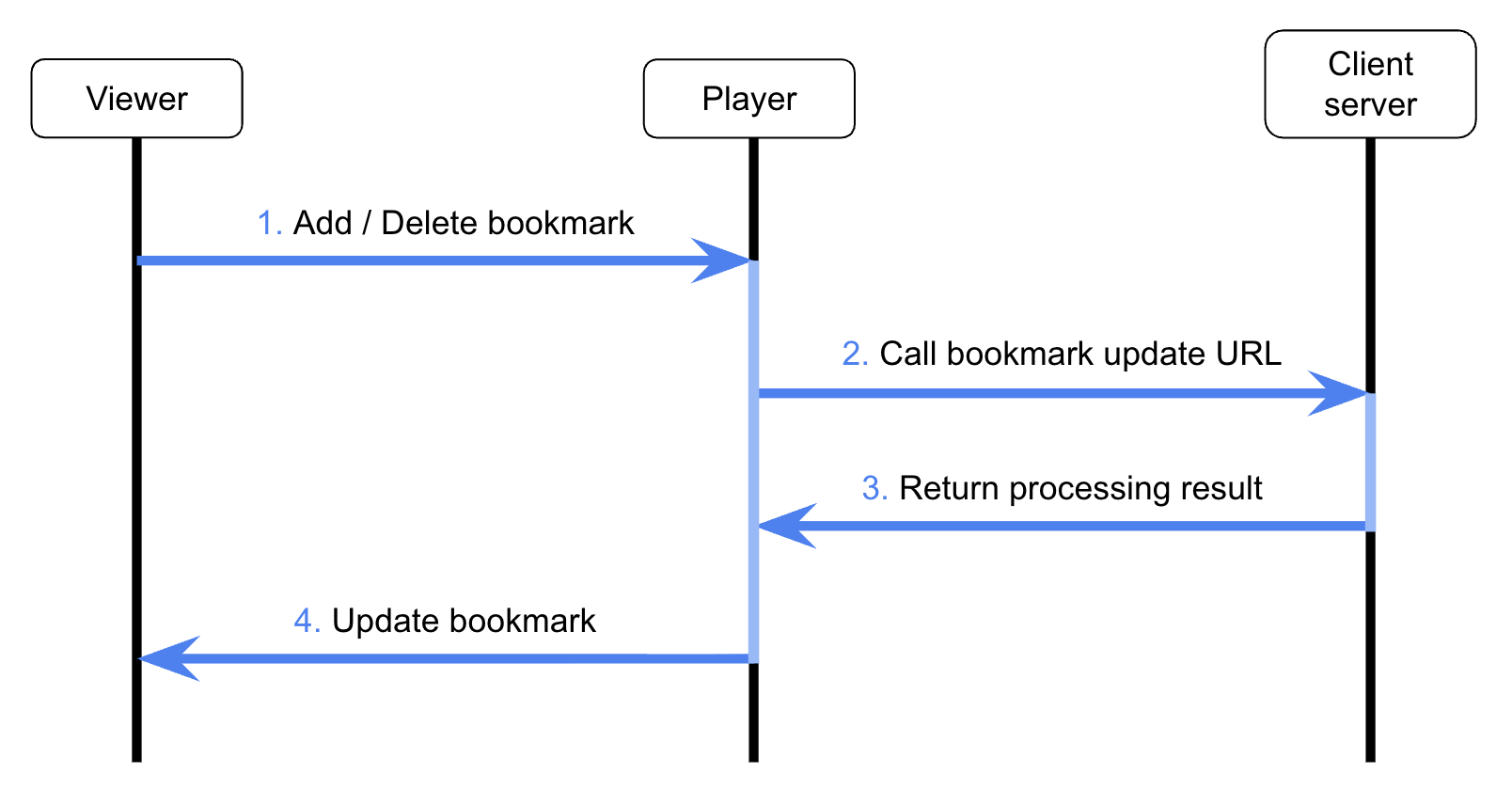

Bookmark add/delete flow

Implementation guide

Customer server implementation checklist

Technical requirements that must be met by the customer's backend system for stable integration.

List API (list retrieval)

Method: Implement logic to receive and process GET requests
Parameter identification: Data filtering based on upload_file_key or media_content_key + client_user_id
Response format: Comply with JSON (UTF-8) format and construct the root object
Status code: The error field value in the response object must be returned as 0 upon successful processing

Update API (batch update)

Method: Implement logic to receive and process POST requests
Data parsing: Parse the JSON string passed via the bookmarks parameter
Sequential processing: Execute register and remove actions within the Action Block array in index order
Data substitution: Handle replacement of uservalue{0~99} dynamic parameters included in the URL with actual data

Error handling

Situation	Recommended handling
Delete request for a non-existent bookmark	Ignore the request but return a success response (`error: 0`)
Duplicate bookmark add request	Update the existing value, or ignore the request and return success (`error: 0`)
Invalid parameter passed	Return a non-zero error code in the `error` field of the response object
