This document is a machine-translated draft and is currently undergoing review. Some content may be inaccurate or differ from the original Korean version. For the most precise information, refer to the Korean documentation.

• PlanEnterprise

Kollus Player provides a feature to display video ads and banner images before, during, or after video playback. This feature can be configured independently on a per-channel basis, allowing you to run differentiated ad strategies for each content group.

Note

• Account permissions: Trial accounts have restricted access to creating and editing player events.
• Latest version support: When using the latest version of Kollus Web Player, ads can be displayed even for content with Multi DRM applied.

Main event types

• Event on Play: A method where you directly specify the ad image or video URL, and manually control the display timing and whether skipping is allowed.
• VMAP (Video Multiple Ad Playlist): An XML-based standard ad specification that allows you to control the playback timing and order of multiple ads within a single video.

---

How to configure events

Step 1: Create an event

1. In the Kollus VOD console, click [Settings] > [Player] > [Event] tab > [Add Event].
2. Configure each item, then click [Add].
   • If the event type is Event on Play: click [Add] on the right of the [Event List] to configure the media information.


     Item	Activation condition	Description
     Media type	Common	Event on Play: A method where you directly specify the ad image or video URL, and manually control the display timing and whether skipping is allowed. VAST: Dynamically calls ad resources from an external ad server.
     Media format	Common	Skippable video: Select this when delivering video-format ads. Overlay image: Select this when displaying banner-format images.
     Media position	Skippable video	Select the timing at which the ad will be displayed. Pre-roll: Before the content starts Mid-roll: During content playback Post-roll: After the content ends
     Media URL	Common	The actual source address (URL) where the ad image or video file is stored.
     Link URL	Common	The landing page address to which the user is directed when clicking the ad. You must enter the full address, such as https://www.catenoid.net.
     Skip settings	Skippable video	Controls whether ad skipping is allowed and at what point (in seconds) it becomes available.
     Media size	Overlay image	Enter the width/height (px) of the ad image to be displayed on the screen.
     Start time	Overlay image	Enter the time point (in seconds), within the total video playback duration, at which the ad image will appear.
     Display duration	Overlay image	Enter the total duration (in seconds) for which the ad image will remain displayed on the screen.
     VAST XML URL	VAST	Enter the standard VAST XML address issued by the external ad server.

   • If the event type is VMAP: enter the URL of the VMAP data.

Step 2: Apply the event to a channel

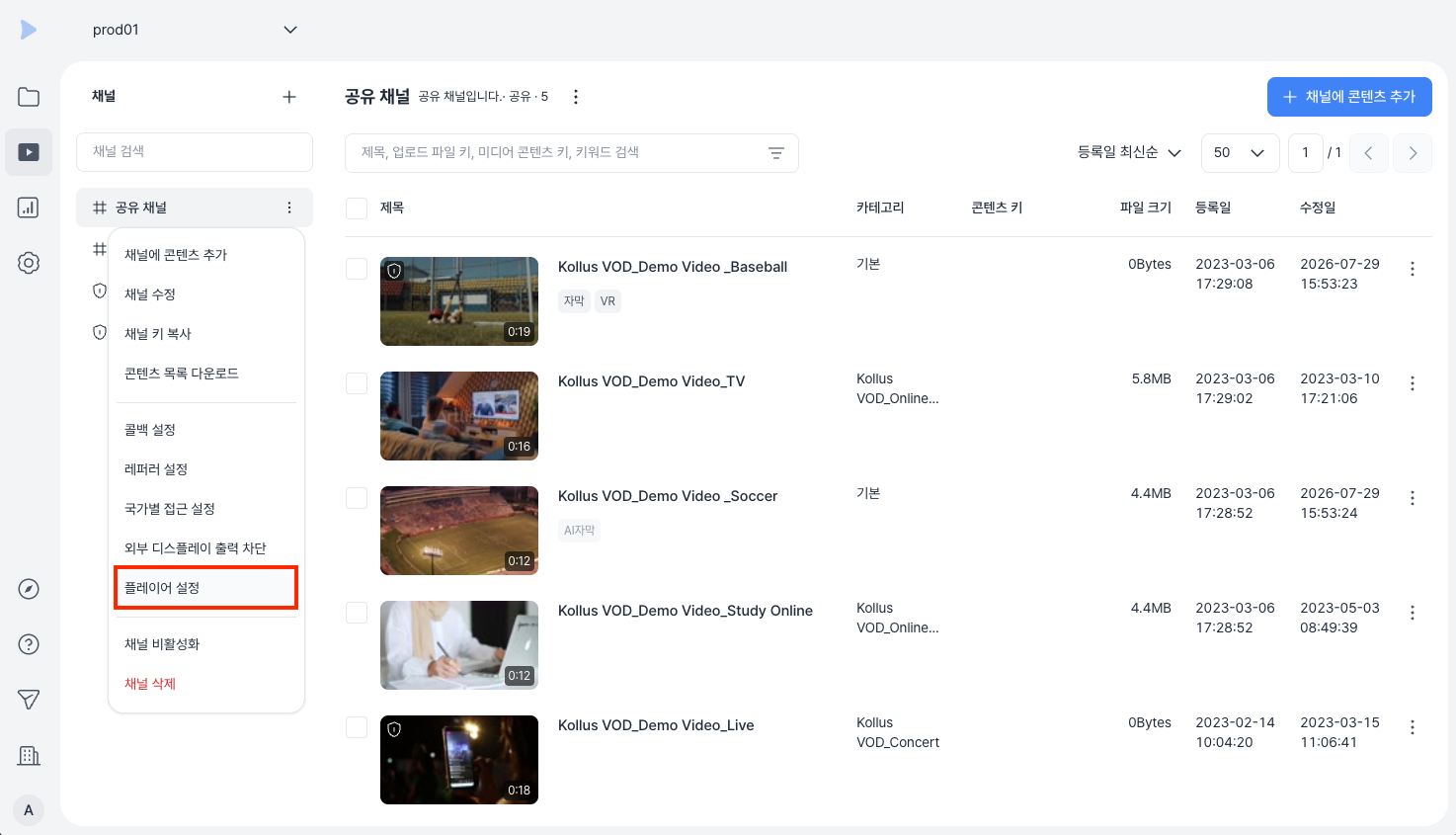

1. In the Kollus VOD console, click [Channel] > [More options] on the right of the target channel > [Player settings].

2. In [Player Event], select the target event, then click [Save].

---

Edit an event

1. In the Kollus VOD console, go to [Settings] > [Player] > [Event] tab, and click the edit icon on the right of the target event.
2. After completing your edits, click [Save]. The changes will be immediately applied to channels using the corresponding skin.
